184 Series Honda H Triple Disc Clutch Kit Flywheel 1848014-3

184 Series Honda H Triple Disc Clutch Kit Flywheel 1848014-3

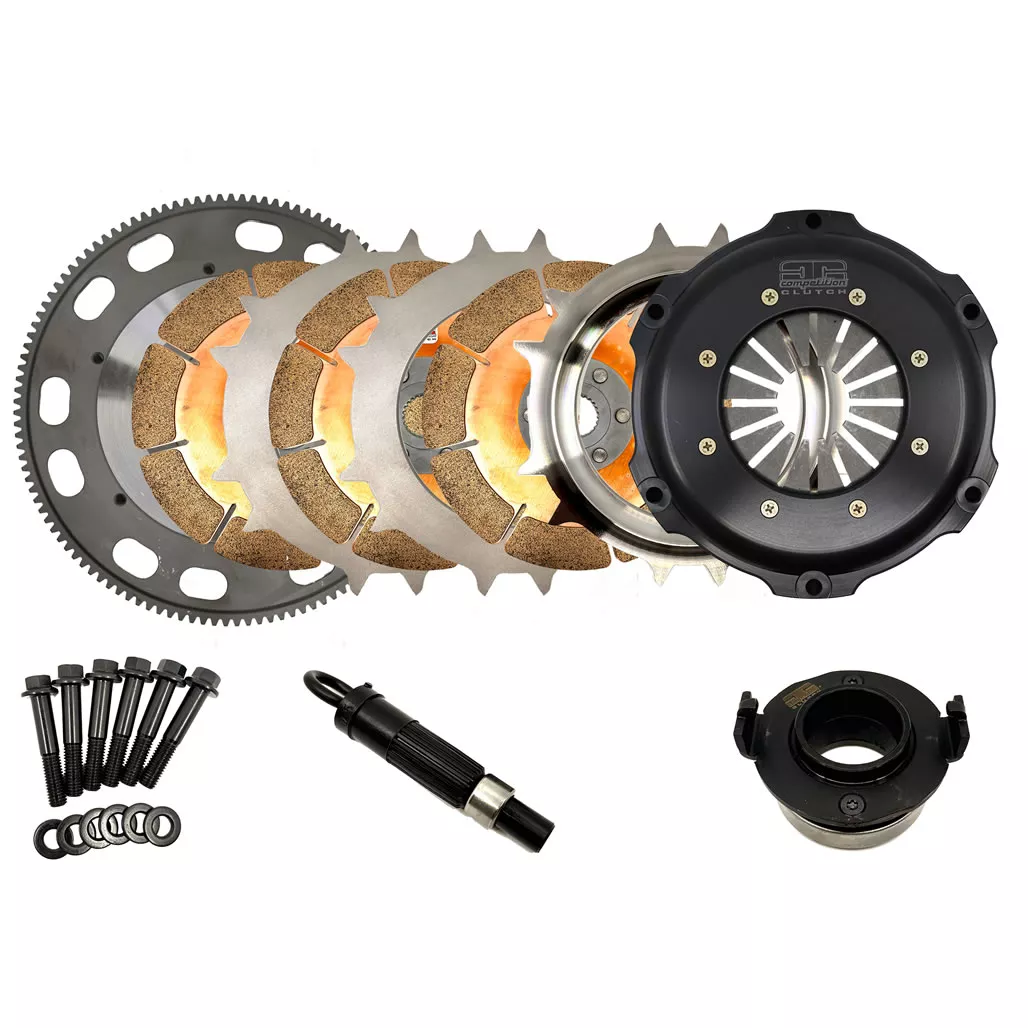

HONDA H SERIES FULL RACE TRIPLE DISC CLUTCH KIT: 184MM CERAMIC DISCS & CHROMOLY FLYWHEEL
Part # 1848014-3

$1,599.00

$1,599.00

ADD TO CART

Specifications

Make
Honda H Series
Clutch Disc Quantity
3
Disc Diameter (mm)
184
Alignment Tool Included
Yes
Disc Material
Ceramic
Disc Style
Segmented
Hub Style
Solid
Hardware Included
Yes
Throwout Bearing Included
Yes
Pilot Bushing Included
Yes
Flywheel Included
Yes
Flywheel Material
Chromoly

Clutch Kit: Full Race Triple Disc: Honda H Series 184mm Ceramic: w/Flywheel

Unrivaled Power Capacity: 2000HP Rated Full Race Triple Disc

When your Honda H-Series build enters the realm of elite horsepower, the 184 Series Full Race Triple Disc Clutch Kit is the only choice. Engineered to withstand a staggering 2000HP, this triple 184mm ceramic disc system is meticulously designed for professional drag racing and extreme forced-induction applications.

This kit represents the pinnacle of Competition Clutch engineering. Every component is CAD/CAM designed and CNC machined to handle massive torque loads while maintaining the precision required for high-RPM shifting. Built, tested, and assembled in our Anaheim, CA facility, this kit is a direct bolt-in solution for the most powerful H-Series engines on the planet.

Proprietary Power-V Drive System

Controlling 2000HP requires more than just clamping forceÑit requires balance. Our innovative Power-V Drive System allows the multiple floater plates to self-center, evening out drive forces across the entire clutch stack. This provides inherent dynamic balance and increases the surface area of the drive system, lowering internal stress and significantly extending the life of your race components.

Key Product Features

  • 2000HP Holding Capacity: The ultimate torque solution for world-class, high-horsepower race builds.
  • Triple Ceramic Discs: 184mm segmented ceramic discs provide maximum surface area and heat dissipation for extreme duty cycles.
  • Chromoly Flywheel Included: Features a high-strength, lightweight Chromoly flywheel for a complete, balanced bolt-in package.
  • Meticulous Engineering: CNC machined and CAD/CAM designed diaphragms ensure consistent engagement and professional-grade reliability.
  • Dynamic Balance: The Power-V system ensures the assembly stays balanced, even at the extreme RPMs found in competition racing.

Why Choose the 184 Series Triple Disc?

The 184 Series Triple Disc is designed for the racer who demands a superior, quality-built assembly that simply won't quit. By combining three high-coefficient ceramic discs with our self-centering Power-V technology, weÕve created a clutch that delivers unrivaled reliability under the most violent racing conditions. We did the homework so you don't have toÑinstall it and dominate.
